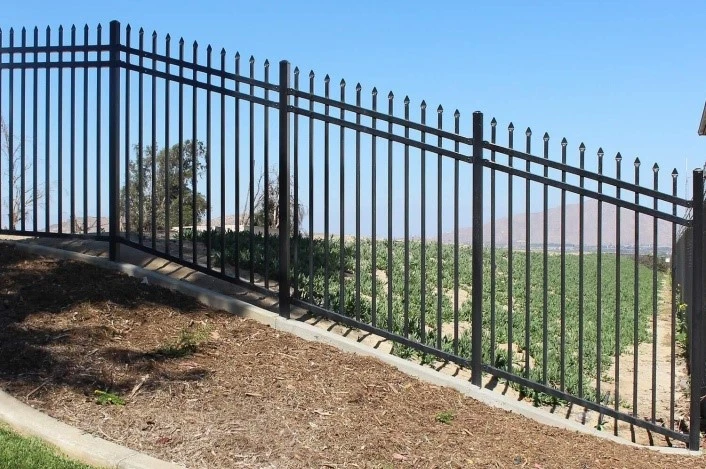

Steel picket fences are a popular choice for both residential and commercial applications due to their durability, security, and aesthetic appeal. These fences consist of vertical steel pickets attached to horizontal rails, forming a sturdy barrier around a property.
|
Essential Details |
|
|
Place of Origin |
Fujian,China |
|
Brand Name |
Yujinxiang |
|
Product Name |
Steel Picket Fence |
|
Material |
Aluminum, galvanized steel |
|
Surface treatment |
Galvanized, Powder coated |
|
Height |
1000mm - 3000mm |
|
Vertical Bar (mm) |
16x19, 19x25, 22x30, 18x23 |
|
Color |
black, white, yellow, blue, etc |
|
Rail quantity |
2 rails ,3 rails etc. |
|
Picket |
16*16mm, 20*20mm |
|
Usage |
Garden Fence, commercial fence, residential fence |
Pickets top is so important. It must be sealed very well on the top, or it is easy to rust. We can ensure you sealed very well pickets. Which highly improved the lifetime of the fence.
1. Heavy-duty Crimp top picket steel fence in Black color only
2.Width 2400mm x Height 1800mm Crimp top diamond shape
3.40x40x1.6mm top rail,25x25x1.2mm Verticals
4. There are 17 vertical pickets 20x20mm with diamond crimped on top.
5. Gap in between the pickets is110mm
6. 60x60x2mm thick post - these are 3m long each, not 2.6m long as others supply.
7. Normal fence powder coated brackets
8. Security fence brackets (powder coated )
9. Caps for 60x60 posts (powder coated )
10. Phosphate treated before powder coating (Very Important)
11.All panels are fully protected
Horizontal Rails:
Type 1: Punch round hole on 20*40mm rail or 40*40mm or 45*45mm rail:
Type2: Punch square hole on 40*40mm rail or 20*40mm or 45*45mm rail:
Type 3: Punch holes on 1-7/16'' * 1-1/2'' "U" Type rail:
Production Process
1. First, cut the (pre galvanized) iron tube(round or square) into the required length.
2. Use the mould to fix the cut tube then weld the rail and pickets. there are two welding methods :
A. full welding \ B.point welding ;
The workers first use the small polish machine to polish the welding points one by one .
3. After finished all the welding ,using the big polish machine (steel sand ) to wash the oil .
4. Then make the whole fence to do the chromium plated .
5. Finally to do the powder coating .
We are always at your service when you need
1.We have 15 years production experience and have 5 years foreign import and export experience.
2. There have strict inspection in our company to control the quality.
(Our company not only have ISO 9001 certificate, but also along with the QC report to you.)
3. We have streamline production to insure the competitive price,
which can insure that you are competitive in your market. Also, insure you the quality and delivery time.
5000+
active members
16+
years experience
500+
events & challenges
20+
expert instructors
Everything You Need to Know
1.How you insure your quality is good and price is competitive?
As to the steel fence, there are 2 parts very important which infact the quality:
--The material: We use Pre-galvanized tube rather than black tube, also, after welded them well, we will do powder coating. As a result, the fence is with high anti-rust ability which can give you at least 10 years warranty.
--The Pickets top: From the above introduction and photo you can see the pickets is sealed very well and no open space. Which can insure the rain come into the tube and improve the lifetime of the fence.
2.Compared with aluminium fence, what is the advantage of your steel fence?
Steel fence is much strong and with low cost compared with aluminium fence.
3.Can you provide samples?
Yes, we can provide samples for you with free charge, but you will have to pay the express cost of the sample. When you finally place order, we will deduct the express cost from the contract amount.
4.How do you control the goods quality?
We have quality control system, during production, after production and before load, we will test the goods and send testing pictures and videos to you.
