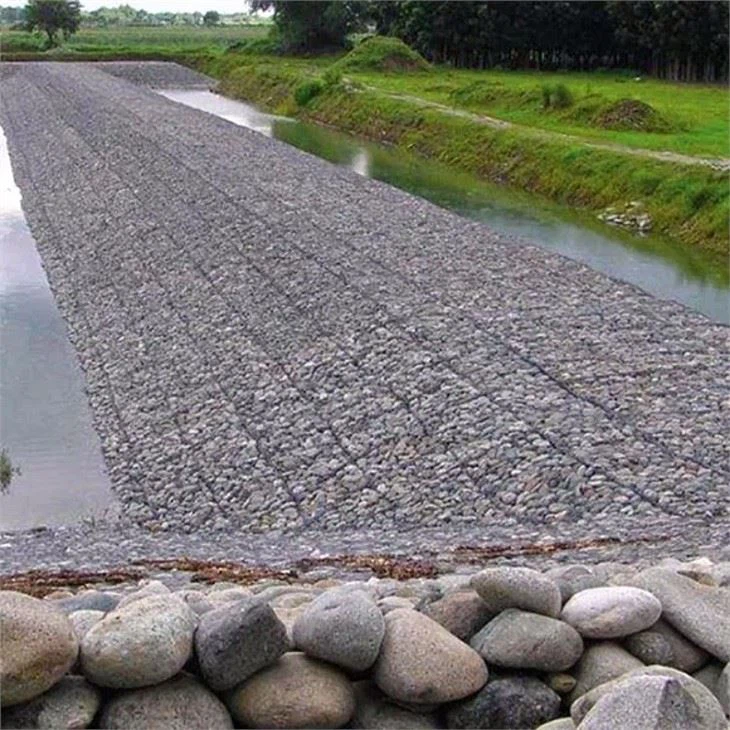

Gabion mat, like gabions, are wire fabric containers, uniformly partitioned, of variable size. Mattresses are relatively small in height in relation to the lateral dimension of a gabion and are generally used for channel linings. It can be filled with stone at the site of use, to form flexible, permeable, monolithic structures such as gabion retaining walls, sea walls, channel linings, revetments and weirs for earth retention.
|
Product Overview |
|
|
Place of Origin |
Xiamen,China |
|
Brand Name |
Yujinxiang |
|
Product Name |
Gabion mat |
|
Material |
high quality low carbon steel |
|
Strucure |
hexagonal double twist steel wire mesh |
|
Surface Treatment |
PVC coated hot dipped galvanized. |
|
Height |
0.15m to 0.3m |
|
Opening |
5cm × 7cm, 6cm × 8cm, 8cm × 10cm |
|
Mesh wire diameter |
2mm to 2.7mm |
|
Selvage wire diameter |
2.7mm to 3.4mm |
|
Metal coating thickness |
no less than 245g/ m2 |
|
Tensile strength |
no less than 389Mpa |
|
Color |
Silver,Green,etc |
|
Net length |
30m/roll |
We follow the major international standard in our manufacturing process.
According to ASTM and EN standards, low-carbon steel wire diameter varies based on the engineering design requirements. Generally between 2.0 and 4.0 mm, the tensile strength of steel wire not less than 380 Mpa, metal coating weight is generally higher than 245 g/m , the edge of the line generally larger than the diameter of cable diameter. The double stranded portion of length not less than 50 mm, To ensure that the twisted part of the wire metal coating and PVC coating from damage.
Products advantages
1. Flexibility
Low-carbon steel wire as a combination of structure, reno mattress has a strong flexibility to adapt to the local subsidence deformation of foundation and protected body. Reno mattresses can adjust their own healing, to prevent the continued development of the deformation.
2. Durability
The Reno mattress is a structure made of hexagonal woven Low carbon steel wire, with hard rock combined to form a very large overall durability.
3. Environmental friendly
Reno mattresses are filled with stones Meeting certain requirements to form protection structures. In the waterfront environment, the voids in the rock fill become progressively filled with silt, promoting vegetation growth which is essential to the preservation and maintenance of the ecological balance of the surrounding environment.
4. Permeability
The stone fill allows the water to seep through the structure while retaining the soil, therefore no additional drainage is required to relieve the hydrostatic pressures. The Reno mattress ensure natural water exchange with the natural groundwater, further strengthened the environmental effects.
5. Integrity
The reno mattress constituted by independent units, but between each adjacent unit has steel wire twisted, So it has good integrity.
Applications
◾River bank. v Channel lining.
◾Foreshore foot protection.
◾Revetments.
◾Spillways.
◾Weirs.
◾Stream banks.
◾Sea wall.
◾Stable slopes.
◾Retaining wall.
◾Highway embankments.
◾Railway cuttings.
